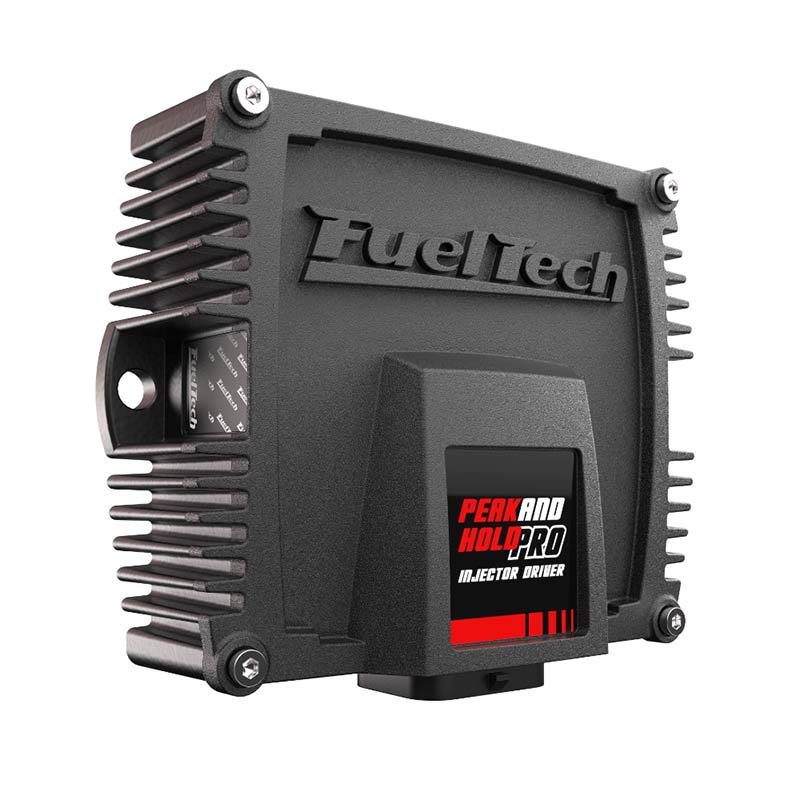

FUELTECH PRO PEAK & HOLD INJECTOR DRIVER W/O HARNESS

FEATURES
Peak and Hold PRO Injector Driver is an advanced module designed to control low impedance injectors at a professional level, featuring 8 channels, 26-way automotive connector and several motor protections levels in case an injector or connection fails.

In general, racing high-flow injectors use low impedance internal coils (with less than 7 Ohms resistance). That allows them to have a much shorter response time than a high impedance injector.

These lower impedance coils require a current control, starting with a higher current at opening stage (peak) and lower current when opened (hold), otherwise the injector can quickly warm up and burn.

With PRO Injector Driver it is possible to apply a higher initial current, allowing quick opening of the injector and then reduce the current to, in general, 1⁄4 the peak current.

Therefore, reducing injector’s deadtime (time between the injector gets energized and effectively sprays fuel).

TECHNICAL DESCRIPTION

• 8 channels
• 2 to 12 Amps (Software selected current, by channel)
• 0.5 to 3 Amps (Software selected current, by channel)
• Automotive connector
• Internal temperature sensor
• Fault diagnosis (CAN)
• Protection against high temperature
• Output for activating the injectors relay
• Aluminum case
• Allows firmware update through CAN
• Standalone
• Dimension: 3.54” x 1.77” x: 4.5”
• Material: Anodized Aluminum and Plastic
• Warranty: Worldwide 1 year

Part #: 3010008062
